Though Total Scope’s parternship with Gimmi® they offer the latest in microscopic surgery technology. Order the full microsurgical instruments set or pick and choose specific instruments.

AlphaDur® Fortis – Stable & Precise High-Tech Instruments

Hernia indication with AlphaDur® Fortis Ø 2.7 mm

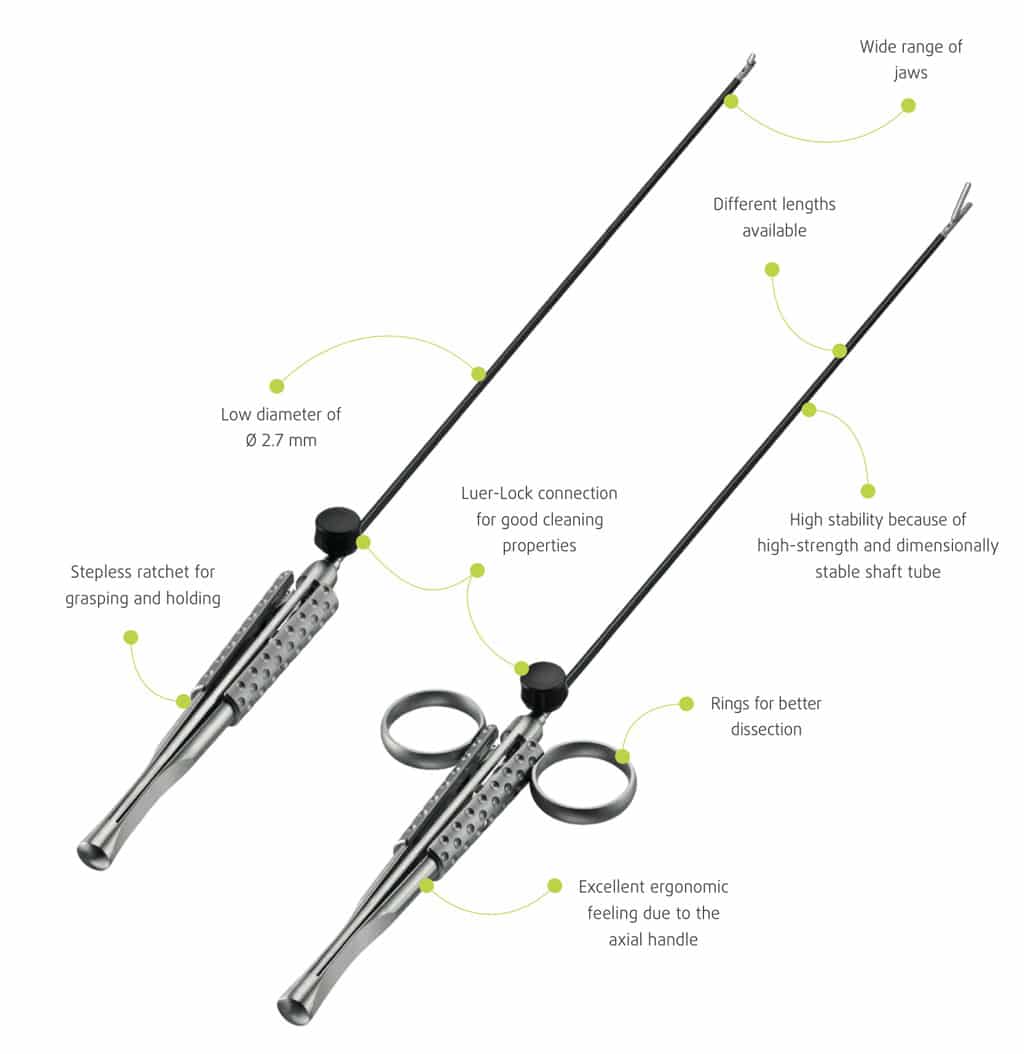

The patented 1-part system AlphaDur® Fortis was specially designed by Gimmi® for experts in minimally invasive surgery.

Advantages

  • Made of high-quality and durable material
  • Grasper with stronger stability compared to
    AlphaDur® Classic
  • Different handles available, with/without ratchet and
    with/without rings, to optimize the handling
  • The axial handle enables delicate work to be done
    quickly and efficiently
  • Available exchange program
  • Almost scarless

Due to its special incision technique and small instrument diameter of just 2.7 mm, patients experience lesser post-operative pain, faster recovery times and an outstanding aesthetic result with unnoticeable scars.

Developed with the strongest material compositions, the minimal diameter creates no disadvantages in surgery, yet the stability and strength can be compared with conventional 5 mm laparoscopic instruments.

The axial handle combines excellent ergonomic feeling with efficiency while allowing precise handling in delicate procedures.

AlphaDur Fortis

Features

Low diameter, less pain, fast recovery time

post op images

Precise handling – endoscopic knots can be handled effortlessly

endoscopic knots

Download the AlphaDur® Fortis Brochure

AlphaDur® Fortis Microscopic Surgery Kits

Order the complete microscopic surgery kit including the AlphaDur® Fortis components or pick and choose unique elements to complement your existing kits.

Tray 1

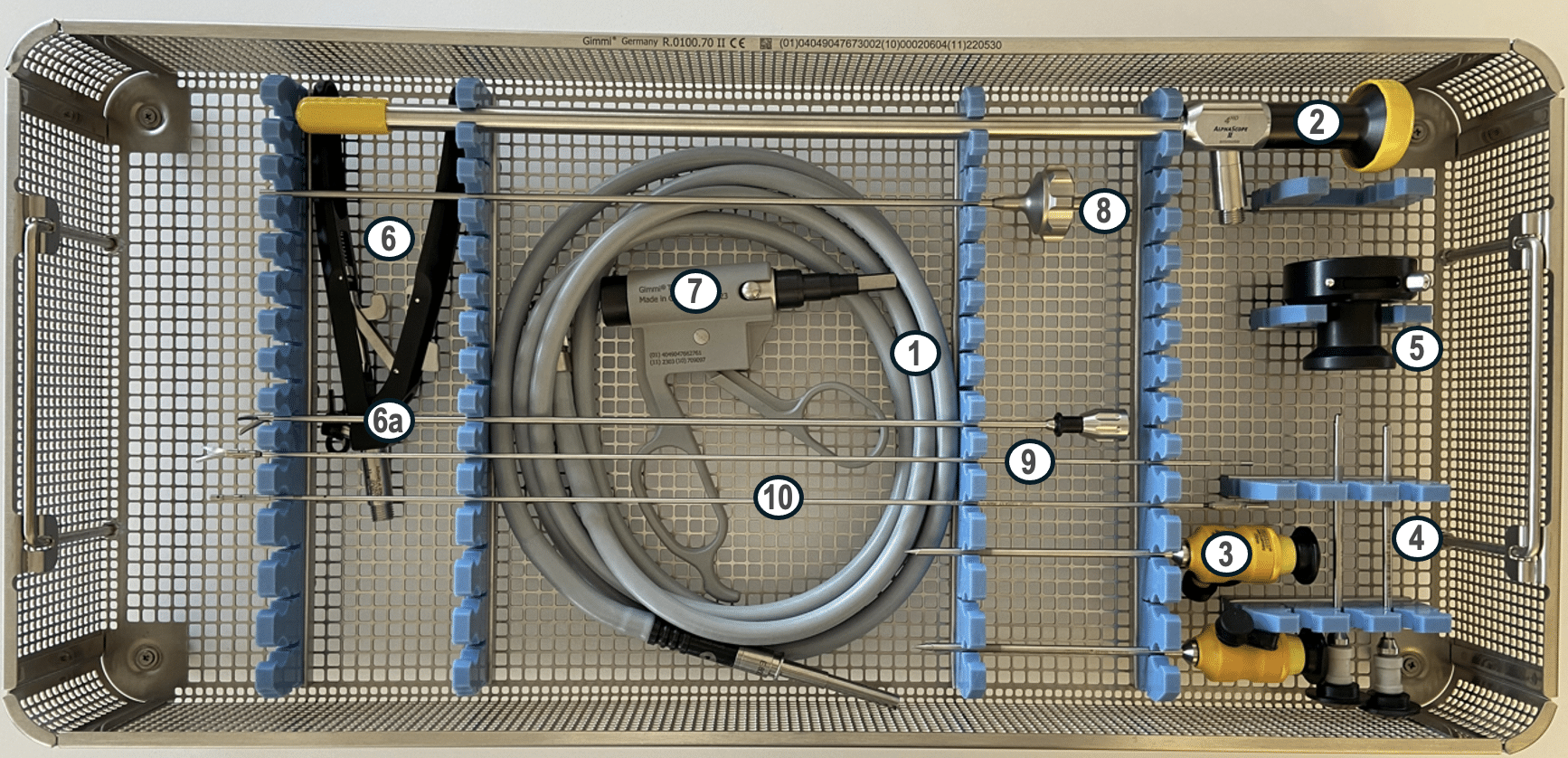

Gimmi hernia set tray 1
Position References Description Image
1 E.8230.48 LED High-transmission light cables High-transmission light cables
2 E.8293.11 IV AlphaScope™ 4HD – 10 mm, 450 mm, 30° AlphaScope™ 4HD – 10 mm, 450 mm, 30°
3 T.8087.03 + T.8047.03 + T.9050.16 + T.8009.58 Trocar System 3mm, Conical tip, bladeless Trocar System 3mm, Conical tip, bladeless
4 T.8009.65 Steel trocar sleeve without Luer-Lock Steel trocar sleeve without Luer-Lock
5 S.2000.47 Swap adapter, long version Swap adapter, long version
6 + 6a S.1329.31 Cernicalo II Needle Holder Ø 3, 2-Part Instrument System Cernicalo II Needle Holder Ø 3, 2-Part Instrument System

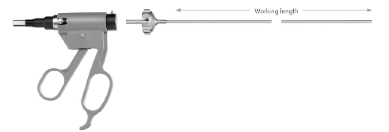

7 + 8 T.0054.10 + T.0054.14 AlphaActive Grip Micro + sheaths, rotatable, Ø 3 mm 290 mm AlphaActive Grip Micro
9 T.0054.16 Bipolar coagulation scissors curved, micro 290 mm Bipolar coagulation scissors curved, micro 290 mm
10 T.0054.17 Bipolar coagulation Grasping forceps, fenestrated, micro, 290 mm Bipolar coagulation Grasping forceps, fenestrated, micro, 290 mm

Tray 2

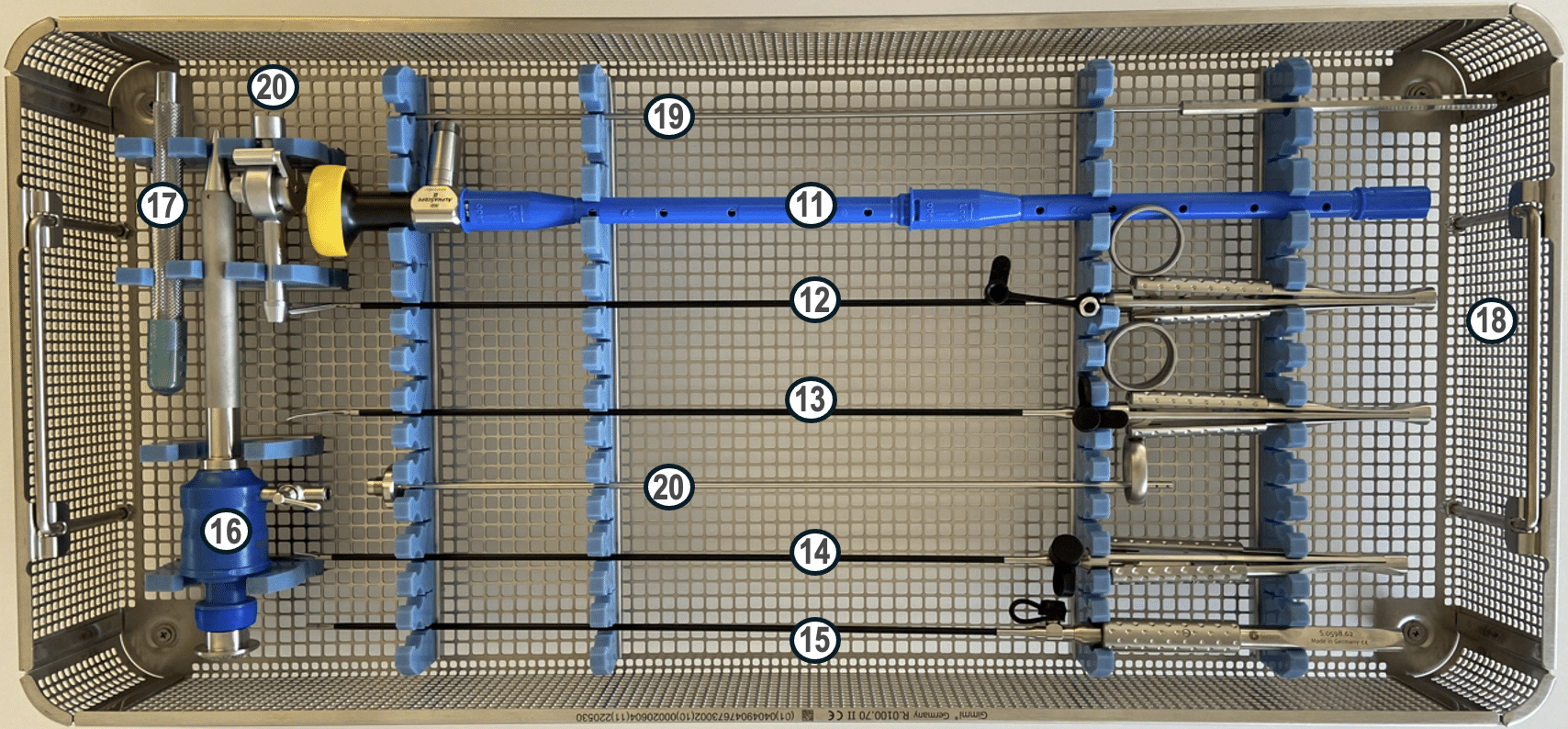

Gimmi hernia set tray 2
Position References Description Image
11 E.8297.43 I AlphaScope™ II HD AlphaDur 300 mm 30° HM AlphaScope™ II HD AlphaDur 300 mm 30° HM
12 S.0598.22 AlphaDur® Fortis, Ø 2.7 mm, Grasping forceps,atraumatic, blunt, 300 mm AlphaDur® Fortis, Ø 2.7 mm, Grasping forceps,atraumatic, blunt, 300 mm
13 S.0598.32 AlphaDur® Fortis, Ø 2.7 mm, Maryland dissector,atraumatic, curved left, 300 mm AlphaDur® Fortis, Ø 2.7 mm, Maryland dissector,atraumatic, curved left, 300 mm
14 S.0598.53 AlphaDur® Fortis, Ø 2.7 mm, Scissors, blunt, curved left, 300 mm AlphaDur® Fortis, Ø 2.7 mm, Scissors, blunt, curved left, 300 mm
15 S.0598.62 AlphaDur® Fortis, Ø 2.7 mm, Needle holder, 300 mm AlphaDur® Fortis, Ø 2.7 mm, Needle holder, 300 mm
16 T.8062.11 + T.8094.11 + T.9110.12 Trocar System, Ø 11 mm + Bladeless 100 mm Trocar System, Ø 11 mm + Bladeless 100 mm
17 S.0598.93 Incision picks, Ø 2.5 mm 9 mm Incision picks, Ø 2.5 mm 9 mm
18 S.0598.86 II Tray only: 540 x 253 x 67 mm
Tray with feet: 540 x 253 x 90 mm		 Tray with feet: 540 x 253 x 90 mm
19 S.0598.95 Hook for hernia mesh, Ø 2.8 mm 300 mm Hook for hernia mesh, Ø 2.8 mm 300 mm
20 T.0034.03 Suction/Irrigation instrument with sliding valve, Ø 2.8 mm 300 mm Suction/Irrigation instrument with sliding valve, Ø 2.8 mm 300 mm

Order Your Kit
